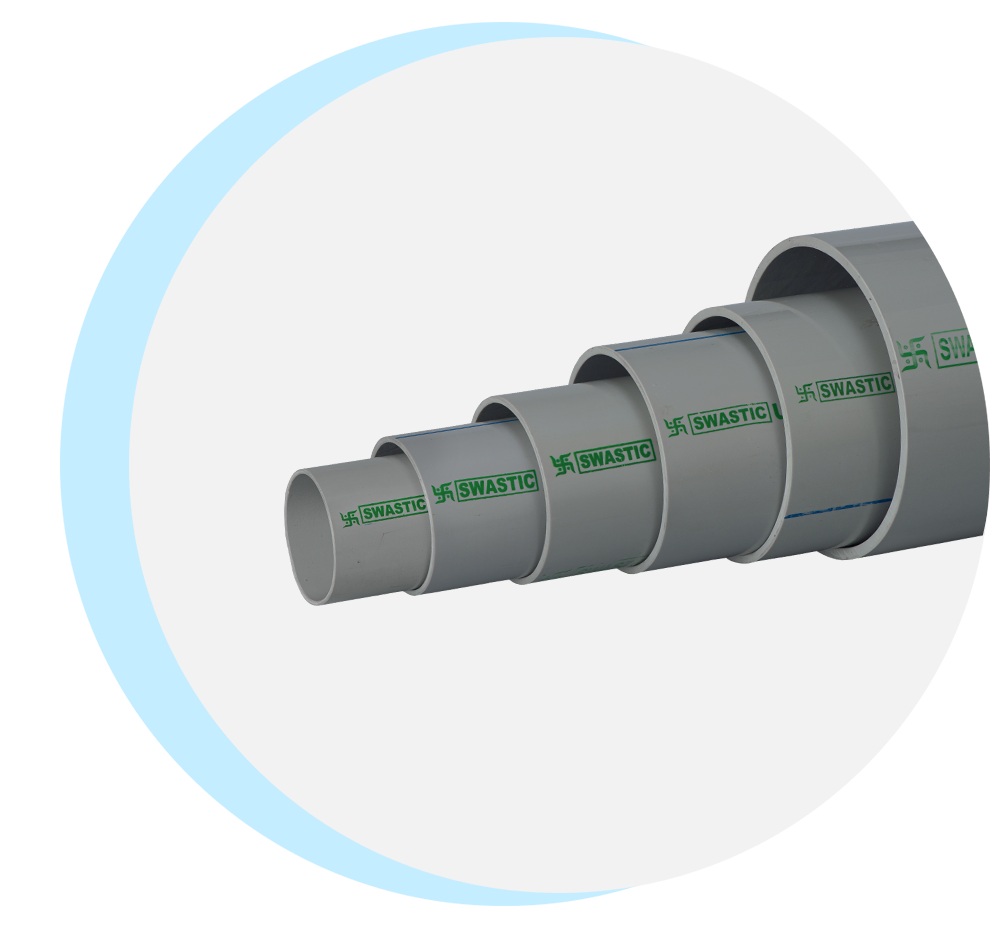

uPVC Agricultural Pipes

We provide a comprehensive range of uPVC Agricultural pipes manufactured strictly as per IS 4985:2021

Our uPVC Agricultural Pipes revolutionize the way water moves through irrigation and drainage systems. Engineered for efficiency, these pipes not only save on installation and transport costs but also ensure seamless water flow with minimal energy loss. By minimizing friction and maintaining a clean internal surface, these pipes ensure efficient water supply, and optimize water usage, making them an environmentally friendly and cost-effective solution for improved farm productivity.

Key Features & Benefits

  • The lightweight nature of our pipes significantly reduces transportation, handling, and installation costs.
  • While typically available in 6-meter lengths, our pipes can be customized to meet specific requirements, reducing the number of joints. This not only saves time but also cuts down on installation costs.
  • Excellent flow efficiency with no sediments or reduction of bore.
  • Unlike traditional materials, our pipes are non-corrosive, eliminating the need for frequent replacements and reducing long-term maintenance costs.
  • Designed for fast and simple installation, our pipes are leak-proof, ensuring reliability and ease of use.
  • Our pipes are completely lead-free, ensuring they are safe for use in water and liquid transfer applications.
  • Extended service life due to low abrasive character.
  • Built to last, Swastic pipes offer a long life cycle, providing consistent performance year after year.
  • With superior resistance to chemicals and corrosion, Swastic pipes maintain their integrity in even the harshest conditions.
  • Lightweight yet high strength & durable.
  • Our pipes are non-toxic, odorless, and tasteless, ensuring the hygienic and safe transfer of water and other liquids.
  • Engineered to resist adverse weather conditions, Swastic pipes maintain their performance regardless of environmental challenges.
  • The smooth inner surface of our pipes ensures very low friction loss, enhancing fluid-flow efficiency and overall system performance.

Applications

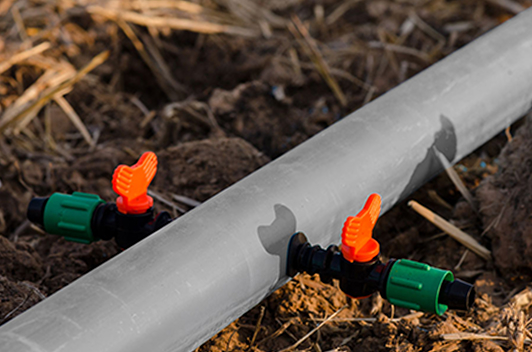

Irrigation

Water Supply

Agricultural

Domestic & Industrial Drainage

Fire-fighting Mains

Effluent Management

Standards & Certifications

Dimension Chart

Nominal Outside Diameter (Normal Size) Mean Outside Diamete Outside Diameter at Any Point Wall Thickness for Working Pressure, MPa
Class 1 0.25 Class 2 0.40 Class 3 0.60 Class 4 0.80 Class 5 1.00 Class 6 1.25
Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max
20 20 20.3 19.5 20.5 - - - - - - - - 1.1 1.5 1.4 1.8
25 25.0 25.0 24.5 25.5 - - - - - - 1.2 1.6 1.1 1.5 1.4 1.8
32 32.0 32.3 31.5 32.5 - - - - - - 1.5 1.9 1.1 1.5 1.4 1.8
40 40.0 40.3 39.5 40.5 - - - - 1.4 1.8 1.5 1.9 1.1 1.5 1.4 1.8
50 50.0 50.3 59.5 50.6 - - - - 1.7 2.1 2.3 2.8 2.8 3.3 3.4 4.0
63 63.0 63.3 62.2 63.8 - - 1.5 1.9 2.2 2.7 2.8 3.3 3.5 4.1 4.3 5.0
75 75.0 75.3 74.1 75.9 - - 1.8 2.2 2.6 3.1 3.4 4.0 4.2 4.9 5.1 5.9
90 90.0 90.3 88.9 91.1 1.3 1.7 2.1 2.6 3.1 3.7 4.0 4.6 5.0 5.7 6.1 7.1
110 110.0 110.4 108.6 111.4 1.6 2.0 2.5 3.0 3.7 4.3 4.9 5.6 6.1 7.1 7.5 8.7
125 125.0 125.4 123.5 126.5 1.8 2.2 2.9 3.4 4.3 5.0 5.6 6.4 6.9 8.0 8.5 9.8
140 140.0 140.5 138.3 141.7 2.0 2.4 3.2 3.8 4.8 5.5 6.3 7.3 7.7 8.9 9.5 11.0
160 160.0 160.5 158.0 162.0 2.3 2.8 3.7 4.3 5.4 6.2 7.2 8.3 8.8 10.2 10.9 12.6
180 180.0 180.6 177.8 182.2 2.6 3.1 4.2 4.9 6.1 7.1 8.0 9.2 9.9 11.4 12.2 14.1
200 200.0 200.6 197.6 202.4 2.9 3.4 4.6 5.3 6.8 7.9 8.9 10.3 11.0 12.7 13.6 15.7
225 225.0 225.7 222.3 227.7 3.3 3.9 5.2 6.0 7.6 8.8 10.0 11.5 12.4 14.3 15.3 17.6
250 250.0 250.8 247.0 253.0 3.6 4.2 5.7 6.5 8.5 9.8 11.2 12.9 13.8 15.9 17.0 19.6
280 280.0 280.9 276.0 283.4 4.1 4.8 6.4 7.4 9.5 11.0 12.5 14.4 15.4 17.8 19.0 21.9
315 315.0 316.0 311.2 318.8 4.6 5.3 7.2 8.3 10.7 12.4 14.0 16.1 17.3 19.9 21.4 24.7
