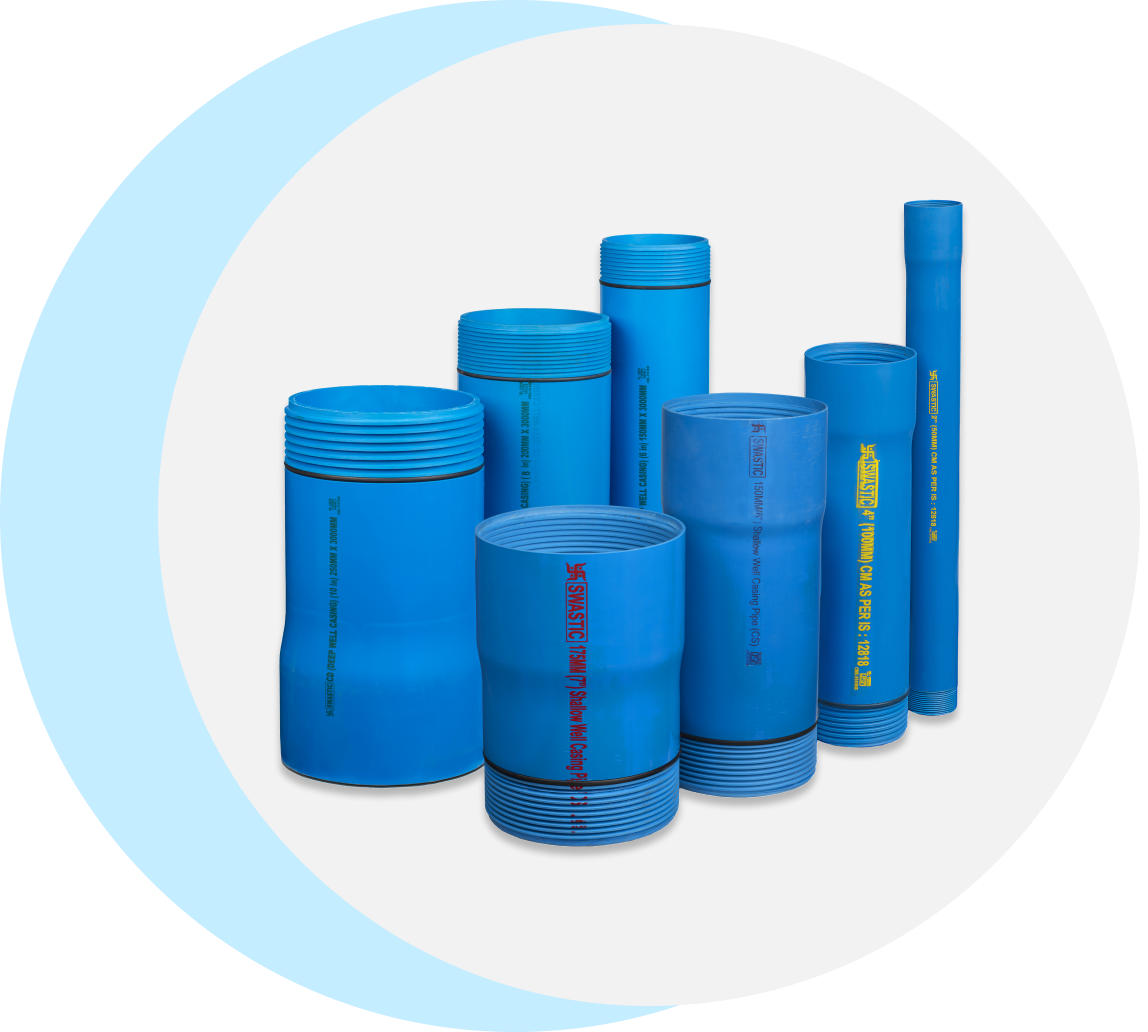

uPVC Casing & Ribbed Screen Pipes

Tubewells today are the main source of water and PVC casing & screen pipes, due to their positive attributes have become an important input for tube-well construction.

Swastic PVC Casing & Ribbed screen pipes designed specifically for the construction of borewells and tubewells ensure smooth extraction of water from shallow, medium, and deep bore-wells. We offer these pipes in different ranges- casing shallow, casing medium & casing deep. Built to withstand the harshest conditions, our PVC Casing & Ribbed Screen Pipes offer unrivaled protection and extra safety to borewells. These pipes are engineered for longevity and environmental safety, ensuring that water remains pure and uncontaminated. With a smooth surface that enhances fluid dynamics, they significantly lower energy consumption in pumping systems, making them an essential component for sustainable water management.

Key Features & Benefits

  • Superior Longevity
  • Chemical & Corrosion Resistant
  • A smooth surface ensures very low friction loss
  • Lower handling, transportation, and installation costs
  • Excellent resistance to adverse weather conditions
  • Lead-free
  • High Tensile Strength
  • Easy to Install
  • Nontoxic, odourless, and hygienic
  • Lightweight but strong enduring long life
  • Cost-effective
  • Nonconductive to Electricity

Applications

Irrigation

Industrial Plumbing

Bore-well & Tubewell

Commercial Purpose

Residential Purpose

Standards & Certifications

Dimension Chart

uPVC Ribbed Screen Pipes

Nominal Diameter Outside Diameter Ribbed Medium Screen
(RMS) (Wall Thickness}		 Ribbed Deep Screen
(RDS) (Wall Thickness)
(mm) (Inch) (min) (mm) (max) (mm) (min) (mm) (max) (mm) (min) (mm) (max) (mm)
40 1½” 52 52.2 3.5 4.0 - -
50 2” 64 64.2 4.0 4.6 - -
80 3” 92 92.3 4.0 4.6 - -
100 4” 117 117.3 5.0 5.7 7.0 7.9
125 5” 144 144.4 6.5 7.3 8.0 9.0
150 6” 169 169.4 7.5 8.5 9.5 10.7
200 8” 229 229.5 10.0 11.2 - -

uPVC Casing Pipes

Nominal Diameter Outside Diameter Medium Casing Pipes (CM)(Wall Thickness) Shallow Casing Pipe (CS)(Wall Thickness) Casing Deep Pipe (CD) (Wall Thickness)
(mm) (Inch) (min) (mm) (max) (mm) (min) (mm) (max) (mm) (min) (mm) (max) (mm) (min) (mm) (max) (mm)
40 1½” 48 48.2 3.5 4.0 - - - -
50 2” 60 60.2 4.0 4.6 - - - -
80 3” 88 88.3 4.0 4.6 - - - -
100 4” 113 113.3 5.0 5.7 - - 7.0 7.9
125 5” 140 140.4 6.5 7.3 - - 8.0 9.0
150 6” 165 165.4 7.5 8.5 5.7 6.5 9.5 10.7
175 7” 200 200.5 8.8 9.8 7.0 7.8 11.8 13.6
200 8” 225 225.5 10.0 11.2 7.6 8.8 13.0 14.8
250 10” 280 280.5 12.5 14.0 9.6 11.0 16.0 17.6
300 12” 330 330.6 14.5 16.2 11.2 13.3 19.0 21.0
