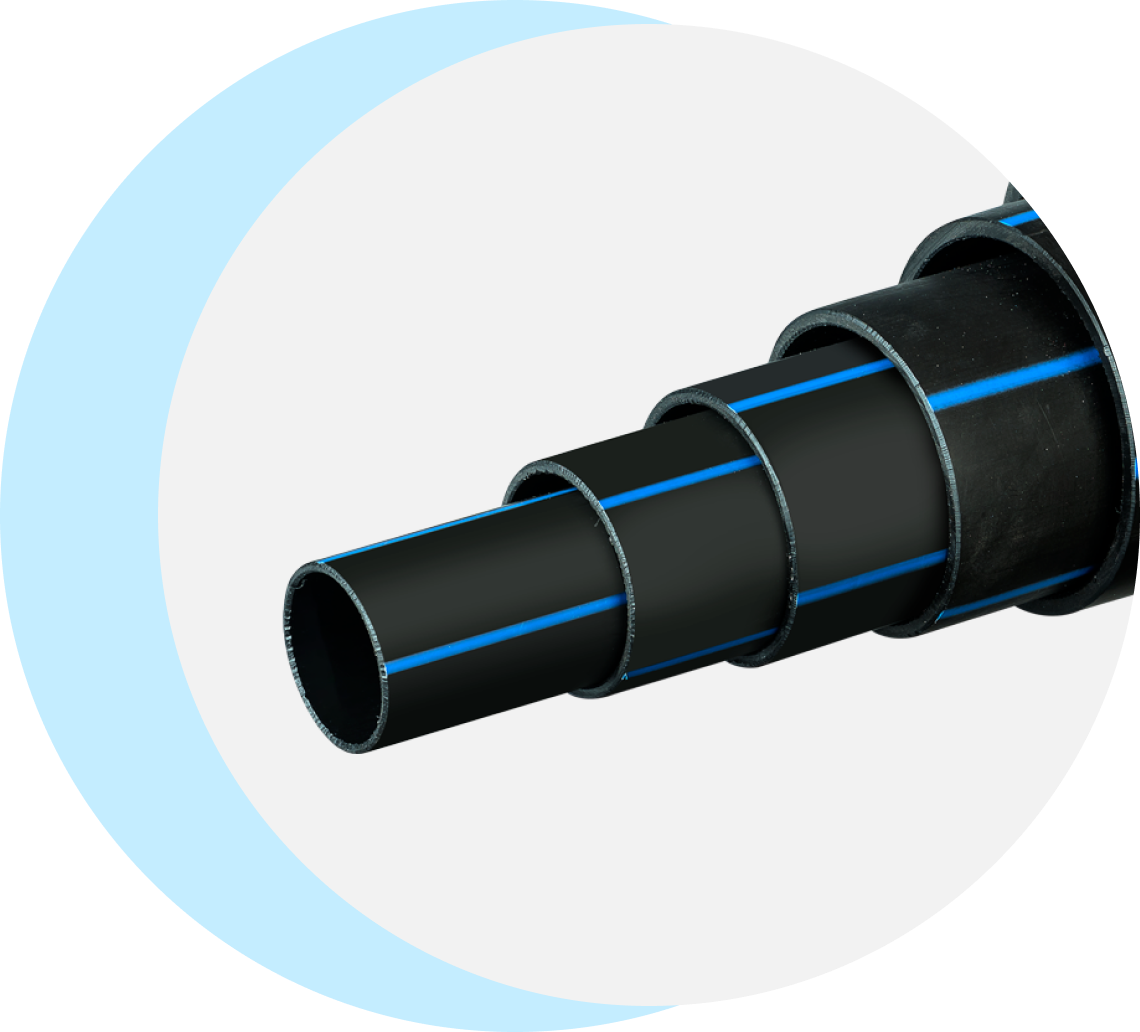

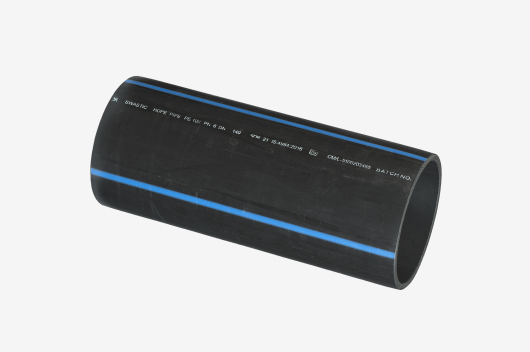

HDPE Pipes

Swastic HDPE Pipes are a versatile, durable solutions for potable water, wastewater, chemicals, and heavy-duty industrial applications.

HDPE Pipes from Swastic Industries are designed to transport a diverse range of substances-potable water, wastewater, slurries, chemicals, compressed gases, etc. to name a few and offer an unmatched balance between strength and versatility. These pipes are not just built to last - they excel in extreme conditions, from underwater pipelines to chemical conveyance systems. With excellent weather resistance and smooth flow properties, they deliver long - term value and performance, making them the go-to choice for agriculture and heavy-duty industrial needs.

Key Features & Benefits

  • Better longevity
  • Resistant to corrosion
  • Light in weight
  • Smooth and high-flow properties
  • Excellent weather resistance
  • Hygienic and safe
  • Excellent butt fusion welding
  • Low costs in operation, handling, and installation
  • Chemically inert
  • High strength and durable
  • UV resistant
  • Flexible
  • Virtually maintenance free

Applications

Potable Water Supply

Gas Distribution

Sewerage Pumping & Effluent Conveyance

Telecommunication & electrical cable ducting

Drainage Pipe Systems for Waste Water, Slurries, Hazardous Wastes etc.

Lift & Gravity Irrigation

Conveying Chemicals, strong Acids & Alkalies

Sand stowing in Mines

Bore wells

Under-water pipelines

Sand Dredging

Biogas, coal gas, and natural gas distribution lines

Standards & Certifications

Dimension Chart

SDR SDR 41 SDR 33 SDR 26 SDR 21 SDR 17 SDR 13.6 SDR 11 SDR 9
Nominal Pressure (PN) Bar
PE 63
PE 80
PE 100		 PN 2
PN 2.5
PN 3		 PN 2.5
PN 3.2
PN 4		 PN 3.2
PN 4
PN 5		 PN 4
PN 5
PN 6		 PN 5
PN 6
PN 8		 PN 6
PN 8
PN 10		 PN 8
PN 10
PN 12.5		 PN -
PN 12.5
PN 16
Nominal
OD mm		 Min
mm		 Max
mm		 Min
mm		 Max
mm		 Min
mm		 Max
mm		 Min
mm		 Max
mm		 Min
mm		 Max
mm		 Min
mm		 Max
mm		 Min
mm		 Max
mm		 Min
mm		 Max
mm
20 - - - - - - - - - - - - 1.9 2.2 2.3 2.6
25 - - - - - - - - - - 1.9 2.2 2.3 2.6 2.8 3.8
32 - - - - - - - - 1.9 2.2 2.4 2.7 2.9 3.3 3.6 4.1
40 - - - - - - 1.9 2.2 2.4 2.7 3.0 3.4 3.7 4.2 4.5 5.1
50 - - - - 2.0 2.3 2.4 2.7 3.0 3.4 3.7 4.2 4.6 5.2 5.6 6.3
63 - - - - 2.5 2.9 3.0 3.4 3.7 4.2 4.7 5.3 5.8 6.5 7.0 7.8
75 1.9 2.2 2.3 2.6 2.9 3.3 3.6 4.1 4.5 5.1 5.6 6.3 6.9 7.7 8.4 9.3
90 2.2 2.5 2.8 3.2 3.5 4.0 4.3 4.8 5.3 5.9 6.7 7.5 8.2 9.1 10.00 11.1
110 2.7 3.1 3.4 3.8 4.3 4.8 5.3 6.0 6.5 7.3 8.1 9.0 10.0 11.1 12.3 13.6
125 3.1 3.5 3.8 4.3 4.8 5.4 6.0 6.7 7.4 8.2 9.2 10.2 11.4 12.7 13.9 15.4
140 3.5 4.0 4.3 4.8 5.4 6.0 6.7 7.5 8.3 9.2 10.3 11.4 12.8 14.2 15.6 17.3
160 3.9 4.4 4.9 5.5 6.2 6.9 7.7 8.6 9.5 10.6 11.8 13.1 14.6 16.2 17.8 19.7
180 4.4 4.9 5.5 6.2 7.0 7.8 8.6 9.6 10.6 11.8 13.3 14.7 16.4 18.1 20.0 22.1
200 4.9 5.5 6.1 6.8 7.7 8.6 9.6 10.7 11.8 13.1 14.7 16.3 18.2 20.1 22.3 24.6
225 5.5 6.2 6.9 7.7 8.7 9.7 10.8 12.0 13.3 14.7 16.6 18.4 20.5 22.7 25.0 27.6
250 6.1 6.8 7.6 8.5 9.7 10.8 12.0 13.3 14.7 16.3 18.4 20.3 22.8 25.2 27.8 30.7
280 6.9 7.7 8.5 9.5 10.8 12.0 13.4 14.8 16.5 18.3 20.6 22.8 25.5 28.2 31.2 34.4
315 7.7 8.6 9.6 10.7 12.2 13.5 15.0 16.6 18.6 20.6 23.2 25.6 28.7 31.7 35.0 38.6
